Instructions:

The spring powder spraying (powder spraying) production line is used for anti-corrosion, wear-resistant or beautiful treatment of the spring surface. The powder coating is uniformly sprayed through the principle of electrostatic adsorption, and the dense coating is formed by high temperature curing. The production line has the characteristics of ‌ automation, high efficiency and strong environmental protection ‌, which is suitable for mass production of springs in automobile, machinery, household appliances and other fields. Operation process ‌ for feeding ‌ - pretreatment ‌ (sandblasting - skim - washing) - drying ‌ - electrostatic spraying ‌, ‌ curing ‌ - cooling ‌ -. Full and environmental protection requirements ‌ equipped with explosion-proof device (spraying area), waste gas incineration system (VOCs treatment). Comply with ISO 14001 environmental standards, powder utilization ≥85%.

Main structure and components:

1. Core equipment composition and function ‌
1, ‌ pretreatment system ‌‌ function ‌ : remove oil and rust on the surface of the spring, enhance the adhesion of the coating.
‌ Equipment includes ‌ : sandblasting machine/shot blasting machine (surface roughness) degreasing tank (alkaline solution cleaning) Washing tank (rinsing residue) Phosphating tank (increase rust resistance, optional)
2, ‌ powder spraying system ‌‌ electrostatic duster ‌ : The use of high voltage electrostatic generator, the powder charged after uniform adsorption to the spring surface. Adjustable gun Angle, air pressure and powder output, suitable for different spring shapes. ‌ powder supply center ‌ : store and circulate powder, equipped with sifter to filter impurities.
3. ‌ curing system ‌‌ high temperature curing furnace ‌ : temperature range: 180~220℃ (depending on powder type). Heating method: electric heating or gas heating, with hot air circulation function. Curing time: 10 to 30 minutes (make sure the coating is fully cross-linked).

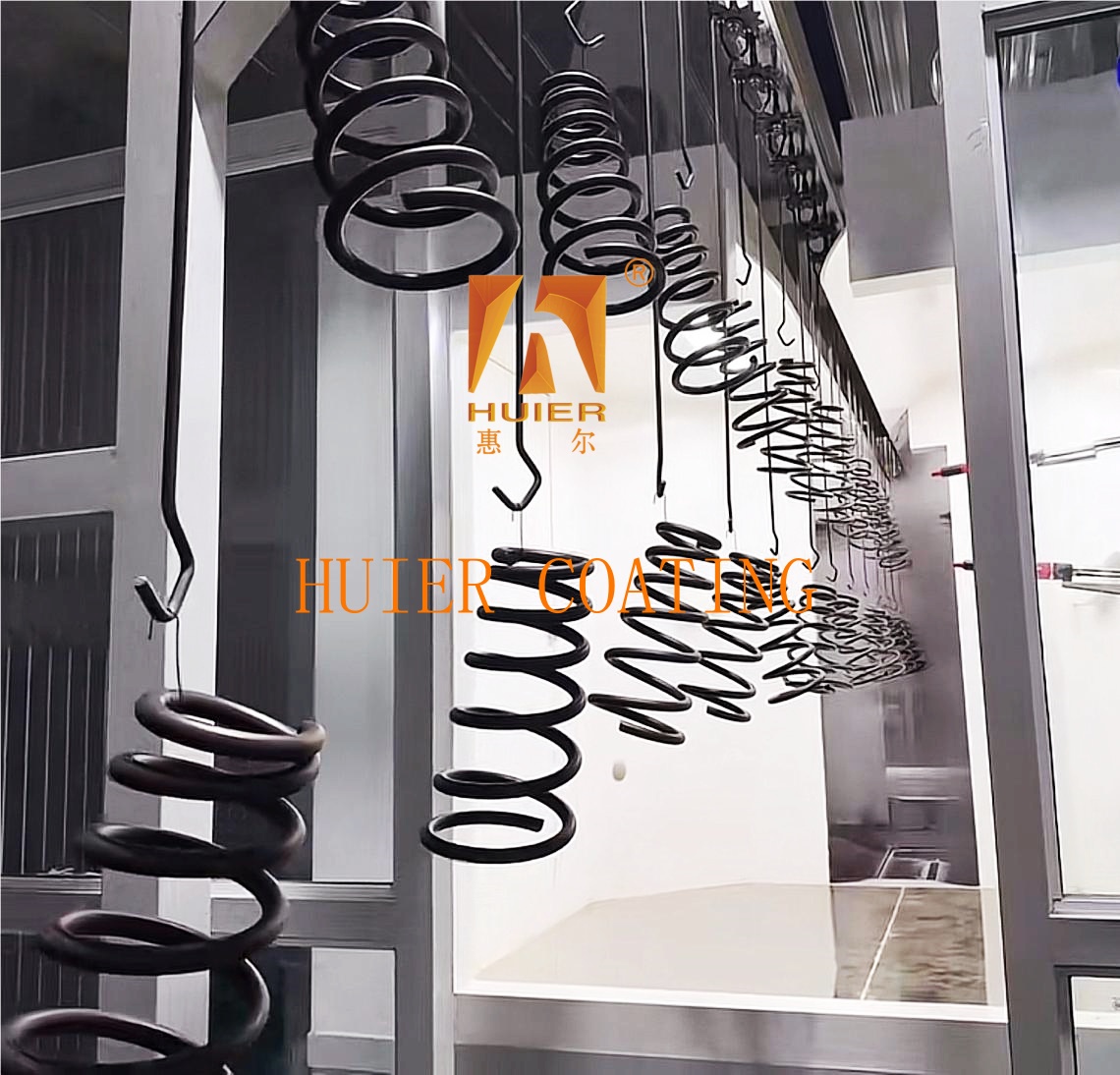

4, ‌ automatic conveying system ‌‌ suspension chain/conveyor belt ‌ : high temperature chain, bearing the spring workpiece through each process.
The speed can be adjusted (1~5m/min) to match the production rhythm.
5. ‌ powder recovery system ‌
‌ cyclone separation + filter element recovery device ‌ : recovery rate ≥95%, reduce powder waste. Equipped with pulse blowback device to prevent blocking of filter element.
6, ‌ intelligent control system ‌
PLC+ touch screen centralized control, real-time monitoring of temperature, wind speed, spraying parameters. Fault alarm and data recording function, support process parameters cloud storage.

Ii. Key technical parameters ‌

Features:

1.High cost performance Based on the customer's product positioning and development strategy, based on economic benefits, to achieve the best cost performance.

2. Advanced equipment design concept of excellence, high degree of automation of industrial equipment, show modern advanced enterprise style.

3.High adaptability to meet the current production requirements, and reserve space for development, considering the later production increase and quality improvement needs.

4.Quality standards strictly follow the IS0900 quality management system, and every small link of the entire equipment installation is strictly checked.

Domestic large-scale coating equipment, intelligent equipment, and environmental protection equipment production enterprises-Zhejiang Huier Coating Environmental Protection Equipment Co., Ltd has 37 years of experience industry team in the powder coating equipment,intelligent equipment and environmental protection equipment.It is the national high and new tech enterprise,Specialized, refined, and innovative small and medium-sized enterprises， scientific and technological SMES 27years specialized R&D, design, manufacture, installation, commissioning ,maintenance of varies coating equipment, automatic equipment, intelligent control system, waste water,waste gas environmental protection equipment and treatment engineering.The company is located in Wukang Street, Deqing County, covers an area of 30,000 square meters, workshop of more than 20,000 square meters, more than 200 employees. The company has passed ISO9001 international system certification, ISO14001 environmental management system certification and ISO45001:2018 Occupational health and safety management system certification, and obtained more than 40 national patents.

The company actively and constantly introduce excellent talents, focus on the development of coating equipment and environmental protection equipment of new technology, new process and new products every year.It is the mission of all staff to continuously develop and grow, meet the needs of customers and create value for customers.

The products are used in all kinds of metal surface, plastic, aerospace, auto parts, mechanical equipment, furniture and other surface treatment.It will meet the customer needs, because it adopts automatic production to anti-corrosion and powder coating the user's products,coating solid bright.

In aerospace, household appliances, light industry, furniture, machine tools, construction, motorcycles, automobiles, communications, aluminum, electric power, agricultural machinery and transportation and other industries by the user's praise. The company continue to innovate, research and development of new products, design and manufacture safety, energy saving, environmental protection, intelligent features of fire-proof safe, powder coating environmental protection equipment and intelligent equipment engineering projects.

The company not only meet the needs of domestic customers, but also in Southeast Asia, the Middle East, Europe, North America, South America and other 27 countries occupied the market has won the favor of customers! The company always dedicated to our customers with the overall intelligent coating environmental protection system solutions and system services.
