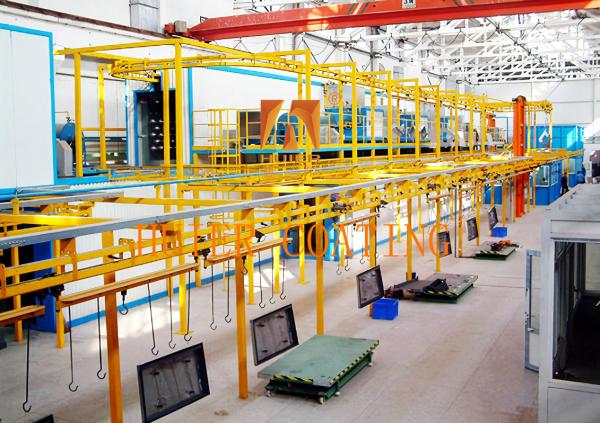

The pre-treatment equipment for fire-fighting equipment is a key
device used for surface cleaning, rust removal, anti-corrosion,
spraying and other pre-treatment of fire-fighting equipment (such
as fire extinguishers, fire hydrants, sprinkler heads, etc.),
ensuring that the equipment is corrosion-resistant, durable and
meets safety standards. Its core functions include: surface
degreasing, phosphating treatment, passivation, drying and
preparation before spraying.
Typical technological process
degreasing cleaning , washed , derusting , secondary
water , watch/phosphating , passivation , dry ,
spraying
This equipment, through modular design, takes into account both
efficiency and environmental protection, and is a core device in
the manufacturing and maintenance of fire-fighting equipment.
Main structure and core components
I. Main Structure
1. Pretreatment tank
Function : To hold cleaning agents, rust removers, phosphating
solutions and other chemical agents, and to complete immersion or
spray treatment.
Material : Acid and alkali resistant stainless steel (e.g. 316L)
or PP plastic, strong corrosion resistance.
2. Conveying system
Type : conveyor belt, suspension chain or roller conveyor.
Function : To transport the equipment in the process sequence to
each processing stage to ensure continuous operation.
3. Sprinkler system
Make up : high-pressure nozzle, circulating pump, pipe.
Function : Perform high-pressure flushing on the surface of
equipment to remove oil, rust and residue.
4. Drying system
Equipment : hot air circulation device or infrared drying box.
Objective : To quickly remove surface moisture and provide a dry
substrate for subsequent spraying/anti-corrosion treatment.
Ii. Core Functional Components
1. Filter device
Type : magnetic filter, bag filter.
Function : To remove impurities from the treatment solution and
extend the service life of the liquid.
2. Heating device
Form : Electric heating tube, steam heater.
Application : Maintain the temperature of the treatment bath
solution (e.g., the phosphating solution needs to be kept at a
constant temperature of 40-60℃).
3. Control system
Hardware : PLC controller, touch screen.
Function : Automatically adjust parameters such as processing
time, temperature, spray pressure, etc.
4. Environmental-friendly components
Waste gas treatment : Activated carbon adsorption tower,
acid-base neutralization device.
Wastewater treatment : sedimentation tank, pH adjustment system.
1.High cost performance: Based on the customer's product positioning and development strategy, and with economic affordability as the foundation, we achieve the best cost performance.
2.The advanced and meticulous design concept of the equipment, along with the highly automated industrial equipment, showcases the image of a modern and advanced enterprise.
3.It has high adaptability, meeting the current production requirements and reserving room for development, taking into account the needs of increased production and improved quality in the future.
4.Quality compliance strictly adheres to the ISO900 quality management system, with every minute detail of the entire equipment installation being strictly controlled.
![]() |
